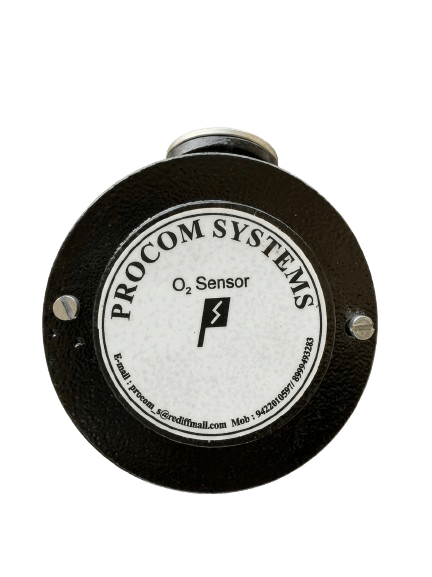

Oxygen Probe Sensors
Procom Systems is proud to introduce Oxygen Probe Sensors to our product range — expanding our offering from temperature measurement into gas analysis and combustion control. Oxygen probe sensors are used to measure the partial pressure of oxygen in furnace atmospheres, enabling precise control of heat treatment processes, brazing, sintering, and more.
Technical Specifications
- Sensor Type: Zirconia-based electrochemical oxygen sensor
- Measurement Range: 10⁻³⁵ to 1 atm pO₂ (specify application)
- Operating Temperature: Up to 1300°C (probe tip)
- Output: EMF (mV) — compatible with Procom temperature indicators and controllers
- Sheath Material: High-grade alumina / Inconel (as per requirement)
- Applications: Atmosphere furnaces, carburising, sintering, combustion control
Key Applications
- Atmosphere-controlled heat treatment furnaces
- Carburising and nitriding processes
- Sintering and brazing furnaces
- Combustion control and efficiency optimisation
- Steel and metal manufacturing atmosphere control
